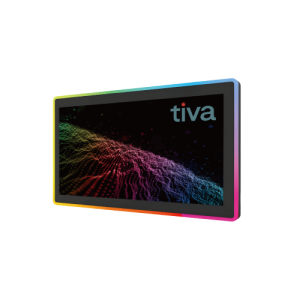

21.5" LED-Frame Touch Monitor
| TLED-21 | |
| Case/ Frame Color | Black |
| Display Type | Active Matrix TFT LCD, LED Backlight |
| The Diagonal Dimension | 21.5 "diagonal |
| Aspect Ratio | 16:9 |
| Active Area Dimensions | 476.06mm(H) x 267.79mm(V) |
| The Display Size | 545.13mm(W) x 342mm(H),Thickness: 56.5mm |
| Resolution (Pixel) | 1920 x 1080 @ 60Hz |
| Display Colors | 16.7M |
| Brightness (Standard) | 250 cd/m2 |
| Response Time (Standard) | 14 ms |
| View Angle (From Center) | L/R:89/89;U/D:89/89 (Typ.) (CR≥10) |
| Contrast Ratio (Standard) | 3000: 1 (Typ.) |
| Input Video Formats | Analog VGA and digital DVI, HDMI (Optional DP) |
| Sweep Frequency | Horizontal: 31.5-60.2 kHz; Vertical: 56.3-75 kHz |
| LED Symphony Marquee | Voltage 12V |
| Remote Controller (Optional) | |
| Touch Technology | Projected Capacitive |
| Touch Chip: ilitek | |
| Touch Points: 1-2 | |
| Touch Supply Voltage: 5V | |
| Touch Interface: USB,RS232 | |
| Touch Support System: Windows, Android, Linux, 3M system | |
| Power | External AC, Input voltage-AC: 110-240VAC 50HZ-60HZ; |
| Power Consumption (Standard) | Display only: 43W (Typ.) |
| Temperature | Operating: 0°-50°C; Storage: -20°-60°C |
| Humidity | Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing) |
| MTBF | 50,000 hours |
| Weight (Approx.) | Net weight: 7 kg (Typ.); Shipping: 8.8kg (reference) |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast,Brightness, Horizontal / Vertical Bits Clock, phase, call default, language (English, German, Spanish, Japanese, French); OSD Fail /Active: Power, OSD menu |
| OSD Remote Accessories | Optional controls (front):Menu, Up, Down, Select, Power |
| Mounting Options | 100mm or 75mm VESA mounting,open bracket mounting |
| Surface Treatment | AG AR AF (Customizable) |
| Agency Approvals | FCC, CE,CB, China RoHS CQC |
