Mobile Holographic Invisible Screen
| Pixel Pitch | 3.91 mm |
|---|---|
| Display Dimension | 1000W x 2000H mm |
| Resolution (dot) | 256W x 512H |
| Transparency Rate | 92% |
| Brightness(cd/m²) | ≥3000（Black Light）≥4500（White Light） |

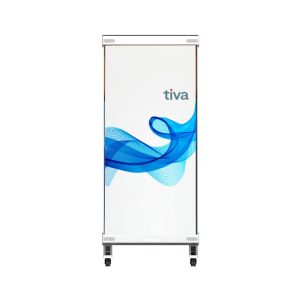

| MWT-32 | ||
| Display Dimension(mm) (WxH) | 1000 x 2000 | 1000 x 2000 |
| Resolution (dot) (WxH) | 256 x 512 | 256 x 512 |
| Profile Dimension (mm)(WxH) | 1020 x 2230 x 75 | 1020 x 2452 x 500 |
| LED Specification | 2121 | |
| Pixel Pitch (mm)(horizontal/ vertical) | 3.91-3.91 | |
| Pixel Density (dot/m²) | 65536 | |
| Transparency Rate | 92% | |
| Brightness(cd/m²) | ≥3000 (Black Light) ; ≥4500 (White Light) | |
| Maximum Power Consumption (w/m²) | 865 | |
| Average Power Consumption (w/m²) | 330 | |
| Color Temperature(K) | 3000 - 10000 | |
| Scanning Mode | Static Driving (Single Pixel Single Control) | |
| Frame Rate (Hz) | 60 - 120 | |
| Encapsulation Type | Light Board & Driving Board Integrated | |
| Lifespan | ≥ 100,000.00 hours | |
| Pixel Configuration | 16bit | |
| Input Voltage | AC100 - 240V 50/60Hz | |
| Working Voltage for Module | DC4.2V ±0.2V | |
| Working Temperature | Temperature -20°C - 50°C | |
| Working Humidity | Humidity 20%RH - 85%RH (Without Condensation) | |
| Storage Temperature | Temperature -20°C - 60°C | |
| Storage Humidity | Humidity 10%RH - 85%RH (Without Condensation) | |
| Protection Degree | IP20 | |
| Installation Method | Floor Standing / Hanging Up | |
| Installation Environment | Indoor | |
| Packing Way | Pearl Cotton+Wooden box/Flight Case | |
