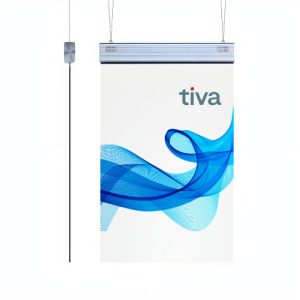

P2 Holographic Invisible Poster Screen
| Pixel Pitch | 2.5 mm |
|---|---|
| Screen Dimension | 55" / 70" / 80" /90" |
| Transparency Rate | 85% |
| Brightness(cd/m²) | ≥1200(Black Light) |
| MWP-2 | ||||
| Screen Dimension(inch) | 90 | 80 | 70 | 55 |
| Display Dimension(mm) (WxH) | 2000 x 1175 | 1750 x 1000 | 1000 x 1475 | 750 x 1175 |
| Resolution (dot) (WxH) | 800 x 470 | 700 x 400 | 400 x 590 | 300 x 470 |
| Profile Dimension (mm)(WxH) | 2016 x 1292 x 78 | 1766 x 1117 x 78 | 1016 x 1592 x 78 | 766 x 1294 x 78 |
| LED Specification | 1515 | |||
| Pixel Pitch (mm)(horizontal/ vertical) | 2.5 - 2.5 | |||
| Pixel Density (dot/m²) | 160000 | |||
| Transparency Rate | 85% | |||
| Brightness(cd/m²) | ≥1200(Black Light) | |||
| Maximum Power Consumption (w/m²) | 865 | |||
| Average Power Consumption (w/m²) | 350 | |||
| Color Temperature(K) | 3000 - 10000 | |||
| Scanning Mode | Static Driving (Single Pixel Single Control) | |||
| Frame Rate (Hz) | 60 - 120 | |||
| Encapsulation Type | Light Board & Driving Board Integrated | |||
| Lifespan | ≥ 100,000.00 hours | |||
| Pixel Configuration | 16bit | |||
| Input Voltage | AC100 - 240V 50/60Hz | |||
| Working Voltage for Module | DC4.2V ±0.2V | |||
| Working Temperature | Temperature -20°C - 50°C | |||
| Working Humidity | Humidity 20%RH - 85%RH (Without Condensation) | |||
| Storage Temperature | Temperature -20°C - 60°C | |||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | |||
| Protection Degree | IP20 | |||
| Installation Method | Hanging Up | |||
| Installation Environment | Indoor | |||
| Packing Way | Pearl Cotton+Carton/Flight Case | |||
