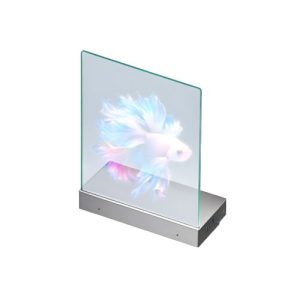

The 20-inch Transparent MicroLED Display boasts a high light transmittance of 70%, allowing it to display information while maintaining excellent visual transparency and spatial integration. With a peak brightness of up to 1200 nits, it ensures clear and vibrant visuals even in brightly lit environments
| GTM-20 | ||
| Panel | Size | 20 Inches |
| Type | Low-Temperature Polycrystalline Silicon (LTPS), Thin-Film Transistor (TFT) Glass | |
| Contrast Ratio | 1000000：1 | |
| Aspect Ratio | 08:09 | |
| Resolution | 480 x 540 | |
| Brightness | 600nits(Max.FullWhite)/1,200nits(Peak) | |
| Interface | Input | HDMI Interface: x1, Display Port: x2 |
| Bezel | Bezel Color | Silver |
| Bezel Dimensions | I-Type: 3/3/3/150mm; L-Type: 3/3/3/80mm | |
| Size | Display Size | 332.16 x 373.68 (mm) |
| Overall Dimensions | 427.5 x 335.4 x 146 (mm) | |
| Weight | 2.5kg | |
| Power/Environment | Power Consumption | Typical: 18W / Max: 54W |
| Protective Glass | Front: 2mm / Back: 1.1mm | |
| Operation | Operating Temp/Humidity | 0°-40°C/10%-80% |
| LED lifetime | 100.000Hrs | |
| Certifications | FCC/CE/cTUVus | |
